NO.：
TS-C4430
Features：

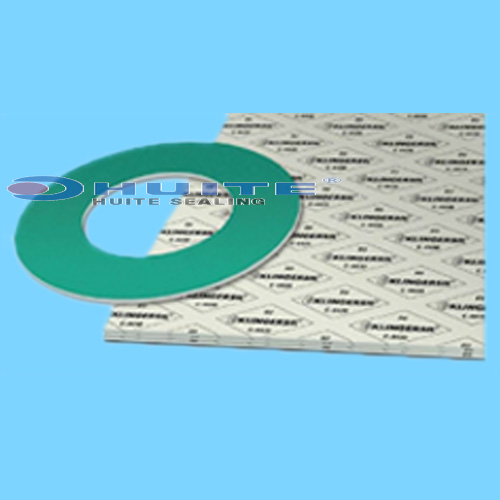

A high-performance compressed synthetic fiber gasket material, which is the first non asbestos gasket material with characteristics similar to high-quality compressed asbestos gasket material, high quality, and excellent chemical resistance. Suitable for air, water, saturated steam, oil, fuel, and various gases. Both sides have 3A anti stick surface treatment, with one side detached from the flange.
最高操作溫度 | 430 | ℃ |
最高操作壓力 | 100 | bar |
壓縮率 ASTM F36A | 8 | % |
回彈率 ASTM F36A (min) | 50 | % |
厚度減小量 23℃ | 8 | % |
厚度減小量 300℃ | 11 | % |
抗拉力 ASTM F152 across grain | 7 | MPa |
氣體泄漏 DIN 3535/6 | 1.0 | ml/min |
壓力松弛 BS7531 | 31 | MPa |
壓力松弛 DIN 52913 (16h, 300℃) | 35 | MPa |
重量增加 ASTM F146 | ||
ASTM （油） No. 3 (5h/150℃) | 3 | % |
ASTM （燃料） B (5h/23℃) | 5 | % |
增厚率 ASTM F146 | ||
ASTM （油） No. 1 (5h/150℃) | 0 - 5 | % |
ASTM （油） No. 3 (5h/150℃) | 0 - 5 | % |
ASTM （燃料） A (5h/23℃) | 0 - 5 | % |
ASTM （燃料） B (5h/23℃) | 0 - 5 | % |
密 度 | 1.7 | g/cm3 |
證明 | P×T | |
可燃性氣體 - AGA No. 208 氣體供應- DVGW No. 92.01e052 適于飲用水 – AS4020 & WRC 氧氣證明 (100bar/85℃) - BAM 食品工業(yè)認證 - LNE 防火安全認證- BS5146 通運輸 - Lloyds 飲用水- KTW |  | |
Data here reported, corresponding to laboratory and field tests results, are meant as non-binding guideline for gasket selection. No guarantee claim can be inferred from them. When needed, we shall be pleased to assist you with specific technical assistance.
